Honda WB20 2 General Purpose Pump
$549.00
Honda WB20 2" General Purpose Pump
2 inch pumpPowered by Honda's 4 HP GX Series OHV premium residential engine with Rigid Mounted Cast Iron Volute and Cast Iron Impeller. For construction, agriculture and rental use, this rugged new water pump delivers Honda's renowned premium performance and quality at a reduce price.
- Honda's OHV Engine
- Cast Iron Impeller and Volute
- Abrasion-Resistant Silicone Carbide Seal
- 2" Suction/Discharge Ports
- Heavy-Duty Full Frame Protection
- Pumps up to 152 Gallons/Minute
- Lightweight Aluminum Pump Case
- Rubber Mounts Minimize Vibration
- 2 Year Residential Warranty
- 1 Year Commercial Warranty
| WB20 Specifications |
|
| Engine | GX120, 4.0 HP, OHV |
| Displacement | 118 cc |
| Bore and Stroke | 2.4" x 1.7" |
| Compression Ratio | 8.5:1 |
| Oil Alert | Standard |
| Pump Type | Centrifugal, Self-Priming |
| Volute | Rigid Mounted Cast Iron |
| Impeller | Cast Iron |
| Mechanical Seal | Silicone Carbide/Silicone Carbide |
| Priming Time | 110 sec. at 16.4 ft. |
| Drive System | Direct |
| Discharge Capacity | 152 gals./min. |
| Suction Port Diameter | 2.0" NPT |
| Discharge Port Diameter | 2.0" NPT |
| Total Head Lift | 92 ft. |
| Suction Head Lift | 26 ft. |
| Maximum Pressure | 40 psi |
| Solids Handling | N/A |
| Dimensions | 17.90" x 14.4" x 16.5" |
| Dry Weight | 46.0 lbs |
| Strainer Part # | 78325-YG3-000 |
Recently Viewed
Honda WB20 2 General Purpose Pump
$549.00 USD

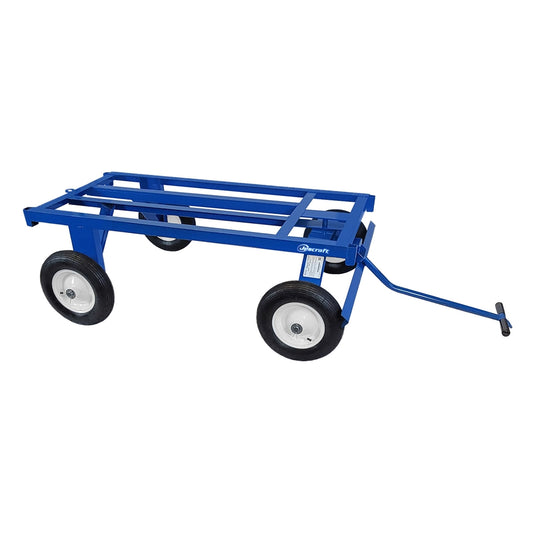

Jescraft FWT-3048-16 4 Wheel Utility Trailer
