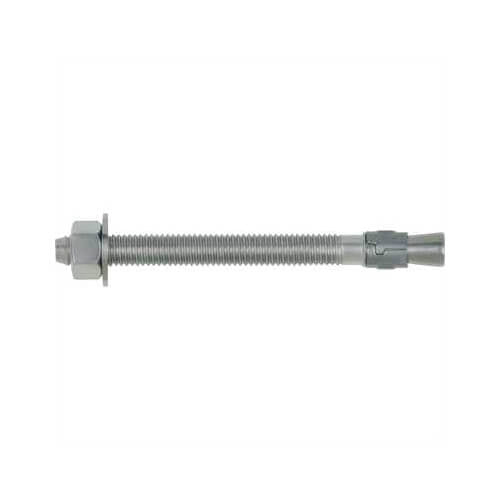

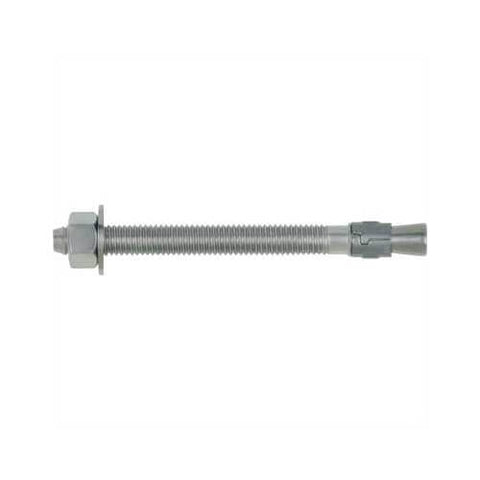

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

• Anchor Size - 5/8" X 3-1/2"
• Anchor Material - Type 304 SS
• Thread Length - 2"
• Minimum Embedment Depth - 2-3/4"
• STD Box - 25
• Weight Per Box - 10.10

(25) DeWalt 07330-PWR PowerStud 5/8 x 3-1/2 in. Stainless Steel Wedge Expansion Anchors
