The P-System connecting fittings can be installed either with the Zeta P2 power tool or using a CNC machine. The use on a CNC machine requires the diamond-tipped P-System cutter with tool opening 30 mm. To cut P-System grooves in the work piece edge using an angle aggregate, a cutter arbor is used the dimensions of which vary according to the unit and machine type. The 6 mm carbide drill is used for angles of up to 30 degrees without deflecting when it hits the work piece surface. This is necessary for mitre joints and other angled connections since the tool openings are at the same angle as the cut, thus presenting a risk of drill slippage.

• Tools for serial production of the P-System connectors on a CNC machine
• The form-locking P-System anchorage enables a powerful installation in the work piece without the need for tools within seconds

• Type Z3, Diamond Tipped, 4/6.6/DTK 48 mm
• Cutting Diameter(D) 7 mm
• Cutting Diameter(D) 100.4 mm
• Hole Diameter 30 mm

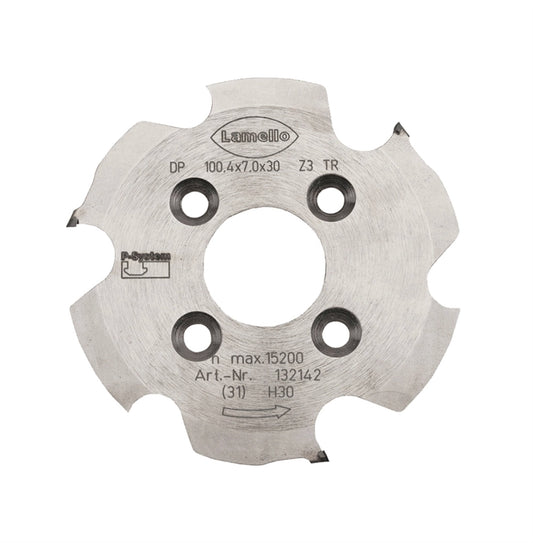

(1) Lamello 132142 P-System CNC Cutter
