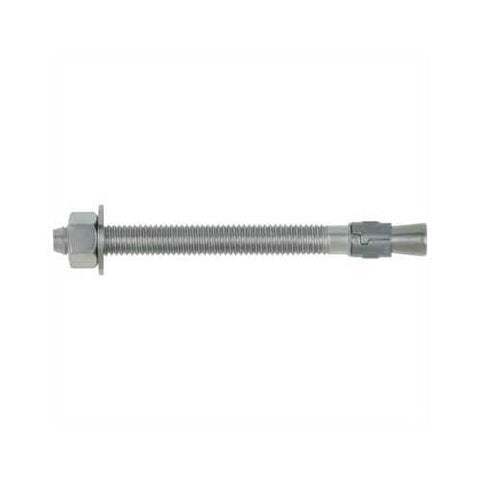

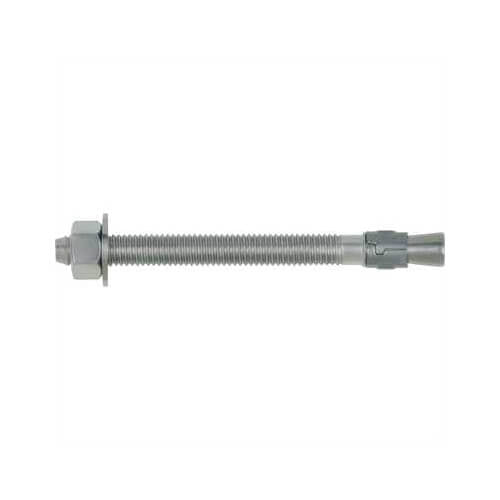

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

• Anchor Size - 3/4" X 5 1/2"
• Anchor Material - Type 304 SS
• Thread Length - 3-5/8"
• Minimum Embedment Depth - 3-3/8"
• STD Box - 20
• Weight Per Box - 16.40 lbs.

(20) DeWalt 07342-PWR PowerStud 3/4 x 5-1/2 in. Stainless Steel Wedge Expansion Anchors
