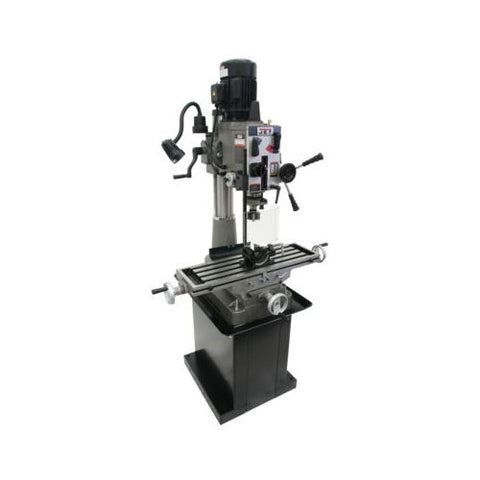

Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.

• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90 deg
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
• Mill Drill Stand, p/n 320020, shown in some images, is optional

• Drilling Capacity (In.) - 1-1/4 Mild Steel
• Face Mill Capacity (In.) - 4
• End Mill Capacity (In.) - 3/4
• Swing (In.) - 21
• Max Distance Spindle to Table (In.) - 15-3/4
• Spindle Taper (In. x TPI) - R-8
• Spindle Travel (In.) - 5
• Quill Diameter (In.) - 3
• Column Diameter (In.) - 4-1/2
• Number of Spindle Speeds - 6
• Range of Spindle Speeds (RPM) - 65, 130, 220, 480, 925, 1550rpm
• Table Size (L x W) (In.) - 32-1/4" x 9-1/2"
• Table Longitudinal Travel (In.) - 20-1/2
• T-Slots Number and Size (In.) - 4 & 5/8 x1
• Base Dimensions (In.) - 24-1/4" x 15-15/16"
• Motor (HP) - 1-1/2HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.) - 28 x 39-1/4 x 42-1/2
• Weight (Lbs.) - 694

(1) JET 351040 JMD-40GH Geared Head Mill/Drill
