High-quality tools designed for daily, 8 hour use in demanding applications and environments, the R8 Series are engineered with additional features for improved power, safety and comfort.

• Twin Hammer impact mechanism delivers balanced power
• Ergonomically designed grip absorbs vibration and reduces hand fatigue
• Lightweight aluminum construction reduces weight
• Easily adjustable, 3-position forward power setting
• Performace @ 90 PSI. Air Inlet NPT 3/8". Min Hose Size 1/2"

• Classification R 8
• Square Drive (In.) 3/4
• Working Torque (Ft.) (Lbs.) 200-1,300
• Max Torque (Ft.) (Lbs.) 1,500
• Free Speed (RPM) 5,500
• Blows Per Minute (BPM) 1,000
• Impact Mechanism / Clutch Type Twin Hammer
• Bolt Capacity (In.) 1
• Anvil Retainer Type Ring/Hole
• Air Inlet (NPT/In.) 3/8
• Air Hose (ID/In.) 1/2
• Air Pressure (PSI) 90
• Air Consumption (CFM) 9.5
• Sound Pressure (db) (A) 79
• Sound Power (db) (A) 90
• Vibration Value (m/s) 12.9
• Overall Length (In.) 8-3/4
• Weight (Lbs.) 10.4

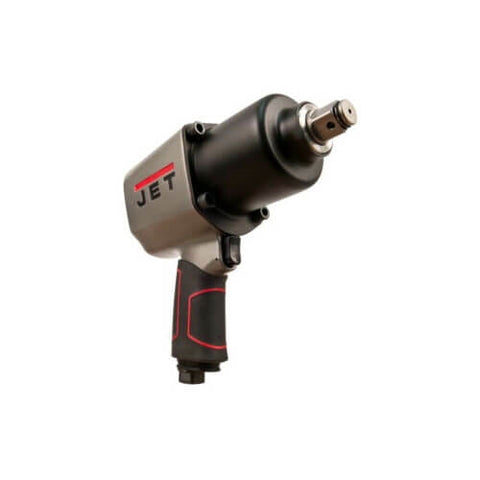

• 1x Jet 505105 R8 JAT-105 3/4" 1500 FT-LBS Impact Wrench
