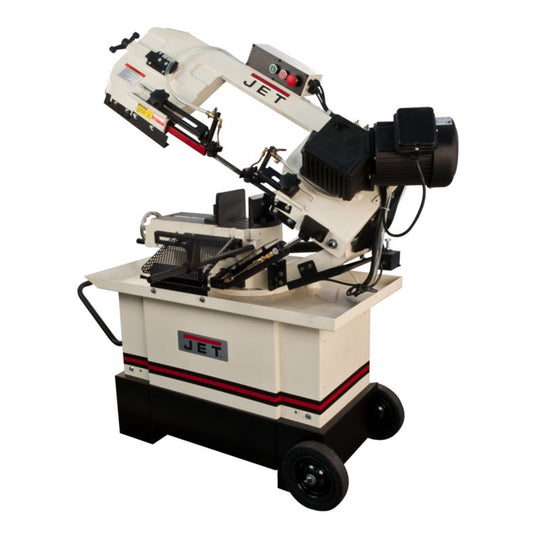

JET 413452 HVBS-710SG, 7 in. x 10-1/2 in. Mitering Geared Bandsaw
$3,149.00
Product Code: JET-413452
Jet 413452 HVBS-710SG, 7 in. x 10-1/2 in. Mitering Horizontal/ Vertical Geared Head Bandsaw 115/230V 1Ph
- UL Listed Motor
- Mitering head swivels to cut any angle 0 deg - 45 deg while the work piece remains secured
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Fully adjustable hydraulic downfeed system
- Heavy-duty cast iron saw bow and bed
- Large 8" wheels and handle for easy movement
- Quick-positioning vise with fully adjustable jaws
- Built-in, self propelled blade brush extends blade life
- Vertical work table
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
| Cutting Capacity (W x D) (In.) | 7 x 10-1/2 |
| Round at 90 Degrees (In.) | 7 |
| Round at 45 Degrees (In.) | 4 |
| Rectangle at 90 Degrees (In.) | 7 x 10-1/2 |
| Rectangle at 45 Degrees (In.) | 4-3/4 x 4 |
| Vise Swivels (Deg.) | 45 deg |
| Head Movement (Deg.) | 45 deg |
| Blade Size (In.) | 3/4 x .035 x 93 |
| Blade Length (In.) | 93-5/8 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Blade Speed (SFPM) | 145, 200, 245 |
| Bed Height (In.) | 23 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Drive | Geared Head |
| Overall Dimensions (L x W x H) (In.) | 51 x 22-1/2 x 41 |
| Weight (Lbs.) | 401 |
