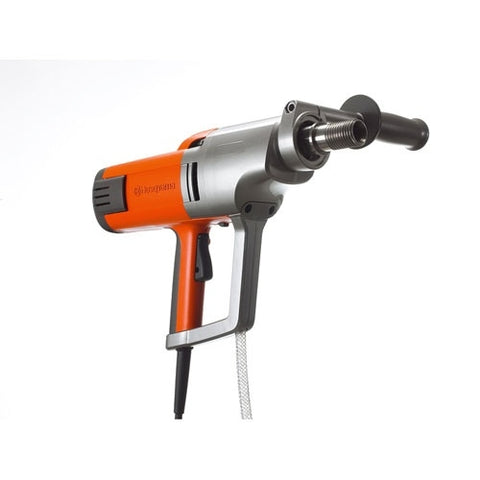

New, handheld drill motor with attractive design and functional ergonomics. Soft rear section and a larger contact area mean that it sits better against your body. The machine is modular, and therefore easy to maintain and repair.

Specifications:

• Elgard, when the machine is overloaded, the motor pulsates (rapid fluctuations in rpm). This occurs at a level just before the electronics cut the power to the motor.
• Functional ergonomics make the Husqvarna drill motors easy and convenient to operate.
• Softstart, an electronic current limiter, for softer starts. Full speed is reached about a second after the switch is turned on.
• SmartStart, for drilling drill motor is equipped with it.
• Water-cooled gearbox (patent pending), where the water passes through the blade spindle, extends life of gearbox and gaskets.
• Standard attachment for the stand, and is mainly meant for wet drilling, but can be fitted with an adapter for dry drilling.
• Buttons and controls are ergonomically designed and easy to reach.
• Water hose and electric cable run parallel conveniently from the machine.
• Thanks to electronic rpm control, the job can always be done with optimum power.

Engine

• Motor: 1 phase, electric
• Voltage: 230 / 110 V
• Amperage: 8 / 16 A
• Power: 1850 W
• Output RPM: 700 / 1700 / 3600 rpm
• Output RPM at full load: 580 / 1400 / 2900 rpm
• Power rating: 1100 W
• Speeds: 3
• Water coupling: G 1/4"

Drill bit

• Max drill bit diameter, handheld: 3 inch
• Max drill bit diameter, stand: 6 inch
• Mounting collar: 2.36 "
• Spindle thread, outer: 1 1/4" 7 UNC
• Spindle thread, inner: G 1/2" or 5/8" 11 UNC

Dimensions

• Weight: 15.6 lbs

Sound and noise

• Sound pressure: 90 dB(A)
• Sound level: 94 dB(A)
