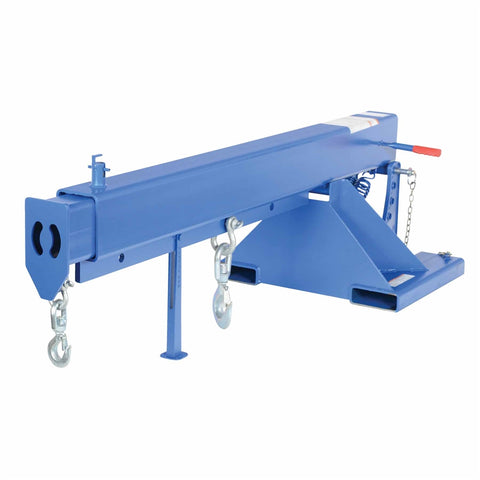

Vestil LM-OBT-8-24 Orbit Telescoping Lift Boom 8K 24In Fork
$5,158.93
Vestil Orbit Telescoping Lift Boom 8K 24In Fork LM-OBT-8-24

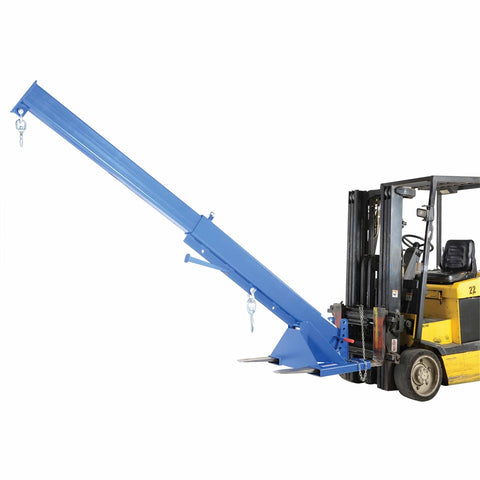

- Unique design converts fork trucks into overhead lifting cranes
- Fork pockets with safety strap attach & secure boom to fork truck
- Robotically welded construction provides precision and durability
- Operations & capacity sticker provide user instructions and safety
| Uniform Capacity (pounds) | 8,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 |
| Fork Pocket Height (in.) | 2-1/4 |
| Restraint Length (in.) | 36 |
| Overall Extended Length (in.) | 145-1/4 |
| Boom Style | Pivot/Telescoping |
| Minimum Hook Point (in.) | 36 |
| Maximum Hook Point (in.) | 144 |
| Single-Hook Capaciy at 36" (lbs.) | 8000 |
| Single-Hook Capaciy at 48" (lbs.) | 6650 |
| Single-Hook Capaciy at 60" (lbs.) | 6000 |
| Single-Hook Capaciy at 72" (lbs.) | 5300 |
| Single-Hook Capaciy at 84" (lbs.) | 4650 |
| Single-Hook Capaciy at 96" (lbs.) | 4000 |
| Single-Hook Capaciy at 108" (lbs.) | 3500 |
| Single-Hook Capaciy at 120" (lbs.) | 3000 |
| Single-Hook Capaciy at 132" (lbs.) | 2600 |
| Single-Hook Capaciy at 144" (lbs.) | 2200 |
| Max Rotation Degree | 37 |
| OSHA | 1910.178(a)(4) |
