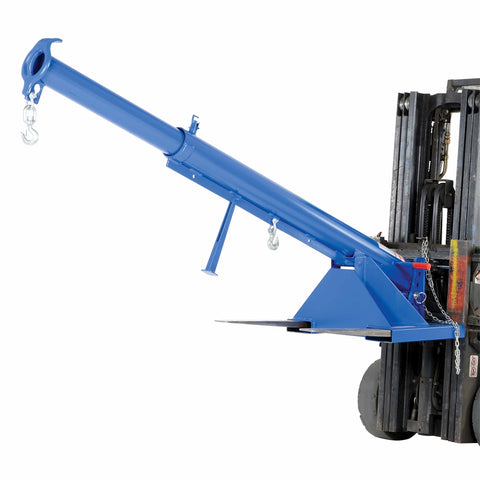

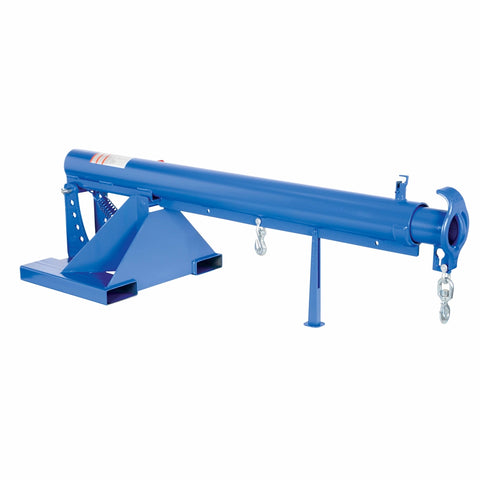

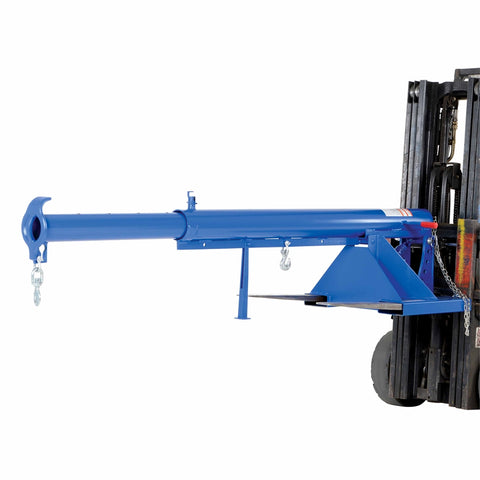

Vestil LM-OBT-4-24 Orbit Telescoping Lift Boom 4K 24In Fork
$3,014.86
Product Code: VES-LM-OBT-4-24
Vestil Orbit Telescoping Lift Boom 4K 24In Fork LM-OBT-4-24
- Unique design converts fork trucks into overhead lifting cranes
- Fork pockets with safety strap attach & secure boom to fork truck
- Robotically welded construction provides precision and durability
- Operations & capacity sticker provide user instructions and safety
| Uniform Capacity (pounds) | 4,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/2 |
| Fort Pocket Height (in.) | 2-1/2 |
| Restraint Length (in.) | 36 |
| Overall Extended Length (in.) | 146-5/8 |
| Boom Style | Pivot/Telescoping |
| Minimum Hook Point (in.) | 36 |
| Maximum Hook Point (in.) | 144 |
| Single-Hook Capaciy at 36" (lbs.) | 4000 |
| Single-Hook Capaciy at 48" (lbs.) | 3750 |
| Single-Hook Capaciy at 60" (lbs.) | 3500 |
| Single-Hook Capaciy at 72" (lbs.) | 3250 |
| Single-Hook Capaciy at 84" (lbs.) | 3000 |
| Single-Hook Capaciy at 96" (lbs.) | 2750 |
| Single-Hook Capaciy at 108" (lbs.) | 2500 |
| Single-Hook Capaciy at 120" (lbs.) | 2250 |
| Single-Hook Capaciy at 132" (lbs.) | 2000 |
| Single-Hook Capaciy at 144" (lbs.) | 1750 |
| Max Rotation Degree | 37 |
| OSHA | 1910.178(a)(4) |
