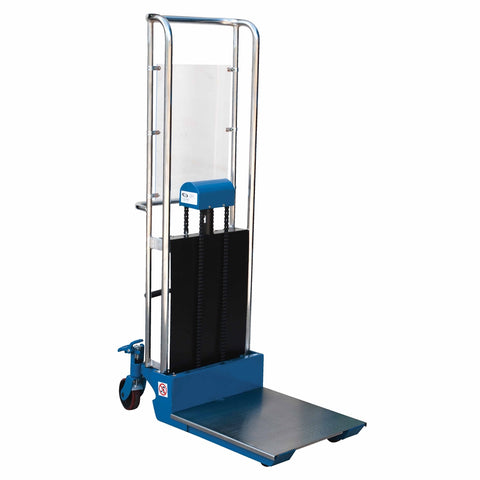

Vestil HYD-10 Portable Foot Pump Hefti-Lift 41 X 69 In
$1,196.98
Product Code: VES-HYD-10
Vestil Portable Foot Pump Hefti-Lift 41 X 69 In HYD-10
- Non-slip chain provides accurate deck positioning
- Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded

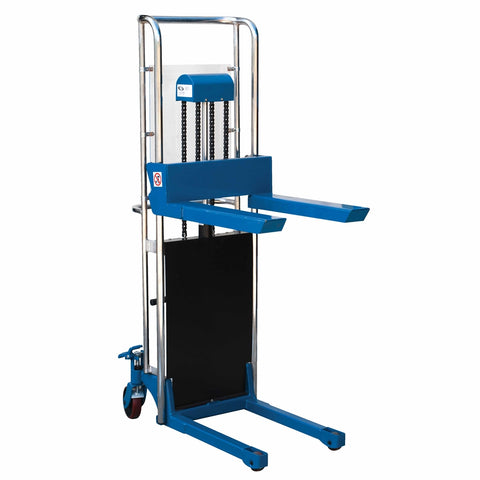

- Removable platform allows operation requiring forks
- Welded steel construction provides long lasting rugged use
| Uniform Capacity (lbs.) | 880 |
| Platform Width (in.) | 23 |
| Platform Length (in.) | 24 |
| Lowered Height (in.) | 3-1/2 |
| Raised Height (in.) | 59 |
| Operation | Foot Pump |
| Number of Pumps (quantity) | |
| Platform Travel per Stroke (in.) | 3/4 |
| Fork Width (in.) | 4-3/8 |
| Fork Height (in.) | 2-1/2 |
| Fork Lenth (in.) | 24 |
| Overall Fork Width (in.) | 21-3/4 |
| Handle Height (in.) | 42 |
| Back Caster Diameter (in.) | 6 |
| Back Caster Width (in.) | 1-1/2 |
| Back Caster Type | Swivel |
| Front Caster Diameter (in.) | 3 |
| Front Caster Width (in.) | 1-1/2 |
| Front Caster Type | Rigid |
| Number of Casters (quantity) | 4 |
| Caster Material | Poly-on-Steel |
| Outrigger Inside Dimension (in.) | 14 |
| Outrigger Outside Dimension (in.) | 18-1/4 |
