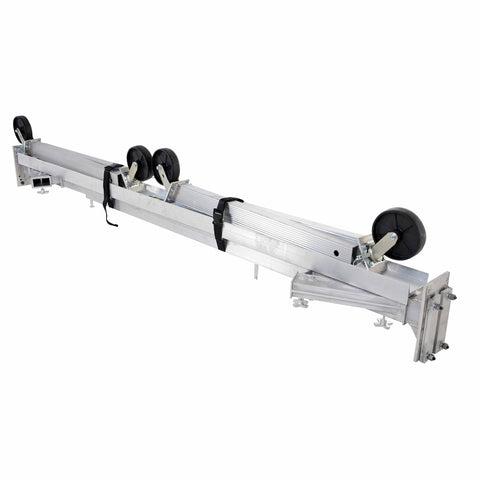

Vestil AHA-4-12-10 Adjust Aluminum Gantry Crane 4K 12 X 10
$5,394.96
Vestil Adjust Aluminum Gantry Crane 4K 12 X 10 AHA-4-12-10
- Heavy-duty welded aluminum construction for long lasting use
- Each unit includes four swivel nylon casters with four-way position locks for safe positioning
- Easy adjustable height can be done with fork truck or other overhead lifting device
- All units comply with applicable CMAA and ANSI specifications
| Uniform Capacity (pounds) | 4,000 |
| Overall Beam Length (feet) | 12 |
| Overall Beam Height (in.) | 8 |
| Flange Width (in.) | 4.17 |
| Under I-Beam Range (in.) | 92 to 122 |
| Base Width (in.) | 53-15/16 |
| Caster Diameter (in.) | 8 |
| Caster Width (in.) | 2 |
| Caster Type | Swivel (4) Position Locking Casters |
| Caster Material | Glass-Filled Nylon |
| Caster Top Plate (ins) | 4 x 4 1/2 |
| Usable Trolley Travel Distance (in.) | 120-1/4 |
| Height Adjustment (in.) | 6 |
