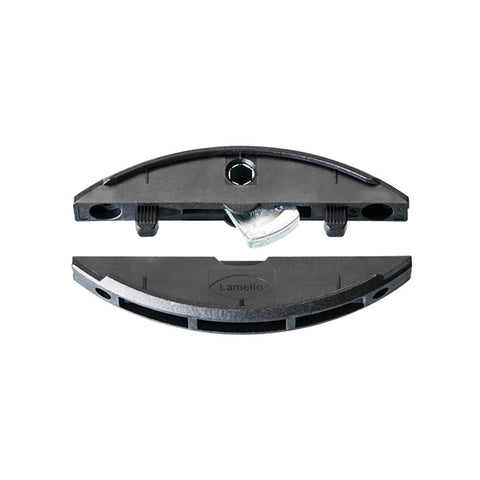

Lamello 145334 Clamex P-14 Standard Connector 80pk
$145.00
Product Code: LAM-145334
Lamello 145334 Clamex P-14 Standard Connector 80pk
Clamex P-14 is a detachable furniture fitting on the basis of the P-System anchorage and is connected with a lever. The form-locking P-System anchorage allows for an exceptionally fast and powerful anchorage in the work piece without tools. Clamex P needs neither glue nor screw, providing the woodworker with uncountable advantages in the production process and in the differentiation from standard furniture fittings. For example, Clamex P can serve to join either detachable or glued furniture mitres. The small 6 mm openings for hexagonal keys make the fitting unique and differentiate Clamex P from standard furniture fittings.
- Detachable connector with very small opening
- Extremly fast insertion of the connectors without tools
- Versatility for all angles and joining situations
- Tensile strength (N)
- MDF: ~ 900 N 90 kg
- Tensile strength (N)
- Particle board: ~ 800 N 80 kg
- Installation tolerance: Longitudinal 1 mm
- Material lever: Zinc die cast
- Material connector: Fiberglass reinforced plastic
- Cutter: 100.4 x 7 x 22
- Size (mm): 66 x 27 x 9.7 mm
- Tensile strength (N)
- Beech: ~ 1000 N 100 kg
(80) Lamello Clamex P-14 Standard Connectors
