Klein conduit benders with Patent Pending Angle Setter technology allow for quick, accurate bends. When performing repeated bends the Angle Setter will save time on the job. Works for floor or air bends.

• Kleins unique Angle Setter technology for quick, accurate repeated bends saving time on the job (Patent Pending)
• Made in the USA Angle Setters create a hard stop for fast, accurate bending
• Movable for four different bend angles: 10-Degree, 22.5-Degree, 30-Degree, 45-Degree (adjusted for conduit spring back)

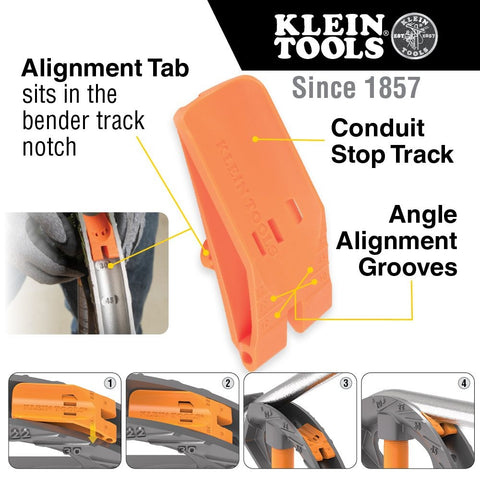

• Align the angle lines on the Angle Setter with the bender, ensure the alignment tabs are fully seated in the bender track notches, press the Angle Setter firmly into place
• Conduit insets into bender head, bend as usual until the conduit makes contact with the setter
• Compatible with Klein ft. 1-Inch Iron Conduit Benders (Cat. No. 51605)
• Also available in 1/2-Inch (Cat. No. 51611) and 3/4-Inch (Cat. No. 51612)

• Material: Delrin Plastic
• Weight: 2 oz (57 g)
• Overall Length: 2.9 ft. ft. (7.3 cm)
• Marking: 10 Degrees, 22.5 Degrees, 30 Degrees, 45 Degrees
• Type: Angle Setter
• Special Features: Patent Pending Technology
• Rigid/IMC: 3/4 ft. ft. (1.9 cm)
• Overall Width: 1.3 ft. ft. (3.3 cm)
• Application: Angle Setter for Klein Conduit Benders
• Thinwall/EMT: 1 ft. ft. (2.5 cm)
• Conduit Size: 1 ft. ft.
• Standard:
• Overall Height: 1.1 ft. ft. (2.6 cm)
• Centerline Bend Radius:
• For Use With: Conduit Bender Cat. No. 51605; Conduit Bender Head Cat. No. 51610

(1) Klein 51613 1-Inch Angle Setter
