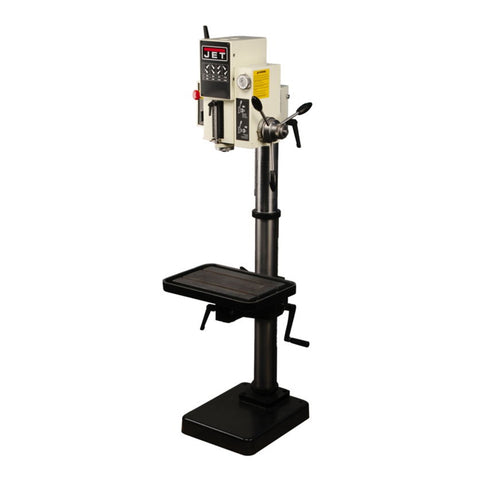

JET 354036 J-A3008M-PF2, 26 in. Arboga Gear Head Drill Press
$8,599.00
Product Code: JET-354036
Jet 354036 J-A3008M-PF2, 26 Inch Arboga Gear Head Drill Press With Powerfeed 220V, 3Ph
- Fiber and steel gears, which do not require an oil bath, allow for easier speed changes
- No-volt release, prevents spindle start up when power returns after shut down
- Adjustable taper bearings mounted in the end of the quill
- Head and table rotates 360 deg around column
- Drill head and table can be raised and lowered
- Helical gears for smooth, quiet operation
- Quick release drill ejector
- English/metric depth gauge
- Machined, T-slotted base plate
- Steel column
- Extra long quill movement
- Fully enclosed spindle
- Large T-slotted table
- Telescoping safety spindle guard
| Style (Type) | Geared Head |
| Drills to Center of Circle (In.) | 25 |
| Drilling Capacity Cast Iron (In.) | 1-3/16 |
| Drilling Capacity Mild Steel (In.) | 31/32 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 12-5/8 |
| Range of Spindle Speeds (RPM) | 90, 190, 320, 530, 640, 1060, 1790, 3610 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 45-5/8 |
| Spindle Distance to Table (Max.) (In.) | 35 |
| Table Size (L x W) (In.) | 15-3/4 x 19-3/4 |
| Table Travel (In.) | 30 |
| T-Slots Number and Size (In.) | 2 - 9/16 |
| Work Table Weight Capacity (Lbs.) | 450 |
| Base Dimensions (In.) | 28 x 24 |
| Base Slots Number & Size (In.) | 2 & 9/16 |
| Motor (HP) | 1-1/2 to 2 HP, 220V, 3Ph |
| Prewired (V.) | 220 |
| Overall Dimensions (L x W x H) (In.) | 28 x 24 x 72 |
| Weight (Lbs.) | 600 |
