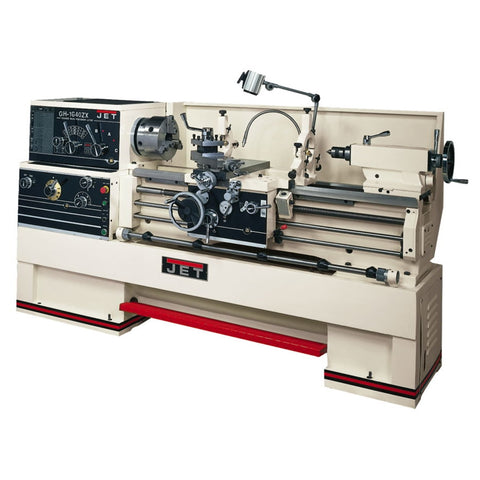

JET 321439 GH-1640ZX Lathe w/ Collet Closer
$33,299.00
Product Code: JET-321439
Jet 321439 GH-1640ZX Lathe With Collet Closer
- 3-1/8 bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Attractive chrome levers, dials and knobs complete this impressive package
- Meehanite Castings
- Standard Equipment
- 10 3-jaw scroll chuck with top reversing jaws
- 12 4-jaw independent chuck
- 12 face plate
- Four-way tool post
- Follow rest
- Large capacity steady rest
- Fully integrated coolant system
- Full length splash guard and coolant return
- Large easy to use foot brake
- Articulating halogen work lamp
- Centrally located controls with jog button
- Threading dial
- Mounting pads and levelers
- Live center
- Tolerance Test Certificate
- Tool box and adjusting tools
| Size | 16 x 40 |
| Accessory 2 | Collet Closer |
| Swing Over Bed (In.) | 16 |
| Swing Over Cross Slide (In.) | 10 |
| Swing Through Gap (In.) | 25-7/18 |
| Length of Gap (In.) | 12-1/4 |
| Distance Between Centers (In.) | 40 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-8 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 25 - 1800 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Number of Metric Threads | 24 |
| Range of Metric Threads | .05 - 20 |
| Max Tool Size (In.) | 1 x 1 |
| Compound Slide Travel (In.) | 5-1/8 |
| Cross Slide Travel (In.) | 9 |
| Carriage Travel (In.) | 35 |
| Tailstock Spindle Travel (In.) | 5 |
| Taper in Tailstock Spindle | MT-4 |
| Follow Rest Capacity (In.) | 3/8 - 7 |
| Steady Rest Capacity (In.) | 1/2 - 3-1/2 |
| Width of Bed (In.) | 13-3/8 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Prewired (V.) | 230 |
| Weight (Lbs.) | 5,475 |
| Overall Dimensions (L x W x H) (In.) | 96 x 44 x 66 |
| Drive | Geared Head |
| Style (Type) | Engine - Large Spindle Bore |
