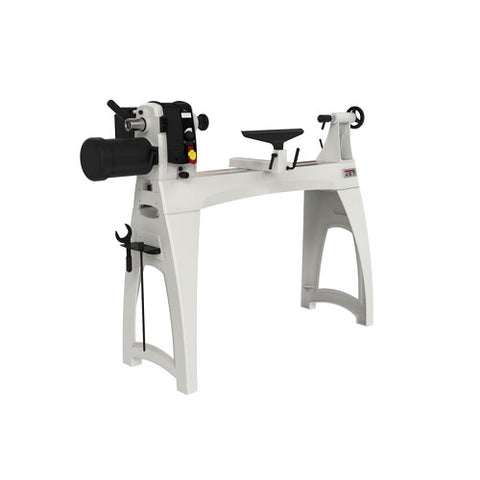

JET 719500 JWL-1640EVS 16 in. x 40 in. Wood Lathe
$2,999.99
JET 719500 JWL-1640EVS 16 in. x 40 in. Wood Lathe
- Headstock slides and rotates for maximum versatility
- Extended spindle nose houses dual headstock spindle bearings
- Improved tailstock quill locking mechanism incorporates an anti-rotation key
- Tailstock features Acme threads for smooth and durable movement
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Tool post locking mechanism designed for year of consistent strength
- Spindle lock latch frees up both hands
- Electronic infinitely variable speed from 40 " 3200 RPM
- 36 integrated indexing positions
- Newly designed headstock locking handle accessible from front of lathe
- Motor Amps: 4.6
- Distance Between Centers: 40"
- Quill Travel: 4-1/4"
- Prewired Voltage: 115 V Input Only
- Outboard Turning: Yes
- Tailstock Bore: 3/8"
- Swing Over Bed: 16-1/2"
- Number of Indexing Positions: 36
- Spindle Bore: 5/8"
- Motor Power: 1-1/2 HP
- Quill Taper: MT2
- Spindle Thread: 1-1/4" x 8 TPI
- Motor Phase (PH): 3
- Spindle Speeds: High 120-3200/Low 40-1200
- Centerline of Spindle to Floor: 44-1/2"
- Spindle Taper: MT2
- Headstock Movement: Slide & Rotate
- Motor Voltage: 230 V
- Speed Range: 40-3200
- Swing Over Tool Rest Base: 12-7/8"
- Recommended Circuit Size: 20 Amps
- Bed Construction: Cast Iron
- Wiring Remarks: 115V input only
- Outboard External Threads (In. x TPI): 3/4-14 LH
- Bed Gap: 1-3/4"
(1) JET 719500 JWL-1640EVS 16" x 40" Wood Lathe
