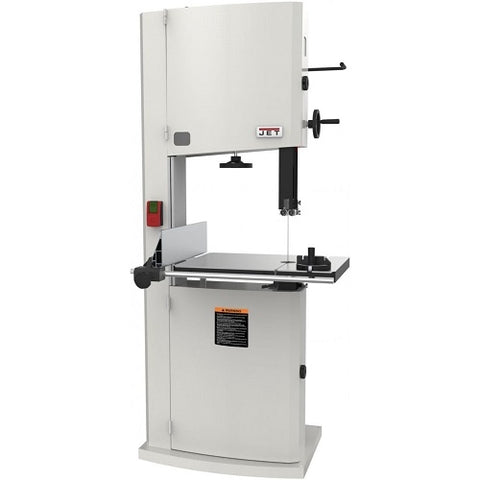

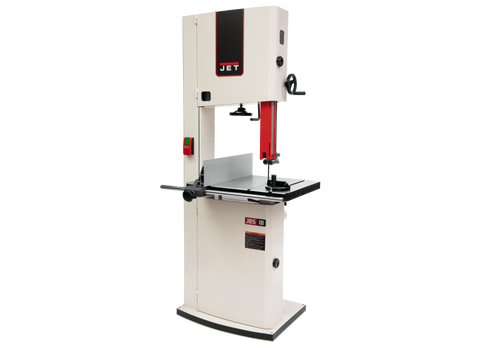

JET 714700 115/230V 1.75 HP 18 Inch Steel Band Saw

$2,549.99 $2,999.99

Product Code: JET-714700

$2,549.99 $2,999.99you save $450.00
Buy Now
Description

JET 714700 JWBS-18 115/230V 1.75 HP 1-Phase 18 in. Vertical Steel Frame Band Saw

Features
  • 16 in. re-saw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
  • 27-1/4 in. x 20 in. precision ground cast iron table for added stability and work support
  • Fence system features a micro-adjustable, dual-position side plate
  • Tool-less, independently adjustable, upper and lower ball bearing guides
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Single knob adjustment simplifies the blade tracking process
  • Blade tracking window provides clear view of blade during tracking
  • Heavy-duty tensioning with quick release features three settings: full tension, partial tension and full release
  • Cast-iron trunnion for maximum support and stability
  • Slotted table allows for front blade removal
  • Cast-iron hand wheels and ergonomically designed knobs make adjustments smooth and easy
  • Round table insert features leveling screws for precise adjustment
  • Conveniently located dual 4 in. dust collection ports catch dust and chips at the source
  • Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts
Technical Specs
  • Amperage: 20A
  • Blade Length: 150 in.
  • Blade Speed (SFM): 2,300 / 3,800
  • Blade Width (Max.): 1-1/4 in.
  • Blade Width (Min.): 1/8 in.
  • Cutting Capacity (W x H): 18 in. x 16 in.
  • Dust Port Size: 4 in.
  • Horsepower: 1.75 HP
  • Motor Phase: 1
  • PreWired Voltage: 115V/230V
  • Table Dimensions: 27-1/4 in. x 20 in.
  • Table Height: 37 in.
  • Table Tilt (Left): 5 deg.
  • Table Tilt (Right): 45 deg.
Include
(1) JET 714700 115/230V 1.75 HP 18 Inch Steel Band Saw
