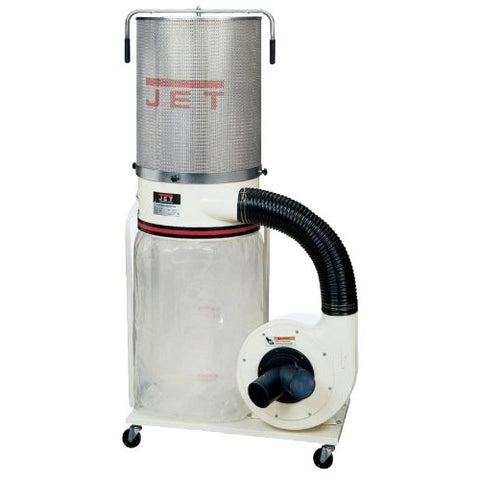

JET 710704K DC-1200VX-CK3 Dust Collector, 2HP 3PH 230/460V, 2-Micron Canister Kit
$1,099.99
Product Code: JET-710704K
Jet 710704K DC-1200VX-CK3 Dust Collector, 2HP 3PH 230/460V, 2-Micron Canister Kit
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
| Style (Type) | Canister |
| Air Flow @ 4" (CFM) | 1200 |
| Number of Air Inlets | 1 at 6", 2 at 4" |
| Static Pressure (Wc.) | 11-1/2 |
| Sound Rating (Db.) | 80 - 85 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 29 |
| Filter Bag/Canister Length (In.) | 25 |
| Impeller Diameter (In.) | 12 |
| Impeller Material | Steel |
| Velocity @ 4" (FPM) | 13,745 |
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 2 |
| Motor Phase (PH) | 3 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 6/3 |
