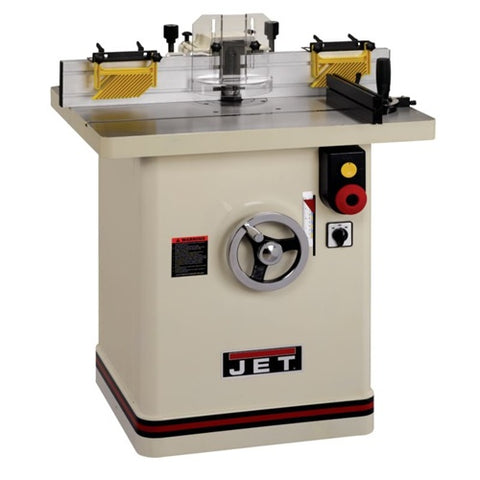

JET 708323 Jws-35X3-1 Shaper 3Hp, 1Ph
$3,599.99
JET 708323 JWS-35X3-1 Shaper 3HP, 1Ph
This new heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed 4000, 6000, 8000, 10000 RPM step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters.- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle
- Large 26-3/4 X 32-1/4 precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting Pins for irregular shaping
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set-up
Specifications
| Part Number | 708323 |
| Spindle Speed | 4000, 6000, 8000 and 10,000 RPM |
| Reversable | Yes |
| Spindle Diameter | 1 1/4 " |
| Spindle Size Under Nut | 4 " |
| Spindle Travel | 4 |
| Tilting Spindle | n.a. |
| Table Size | 26 3/4 x 32 1/4 " |
| Table Height From Floor | 33.25 " |
| Table Opening Diameter | 71/4 " |
| Table Insert Opening Diameter | 2 5/8 and 4 7/8 " |
| Fence Size (L x H) | 4 3/4 x 16 " |
| Fence Travel (Major and Minor) | 4 and 1 " |
| Slide Table Size (L x W) | n.a. |
| Table Travel | n.a. |
| Table Inserts | 2 |
| Maximum Diameter Cutter Below Table | 6 " |
| Maximum Diameter Cutter Above Table | 71/2 " |
| Router Bit Collet Diameter | 1/4 and 1/2 " (optional) |
| Dust Port Outside Diameter | 4 " |
| Dust Collection Minimum CFM Required | 400 cu.ft/min |
| Electrical Controls - Magnetic Starter | Yes |
| Digital Readouts | n.a. |
| Motor Power | 3 HP |
| Motor Voltage | 230 V |
| Prewired Voltage | 230 V |
| Motor Current | 14 A |
| Motor Phase | 1 Ph |
| Model Number | JWS-35X3-1 |
| Brand | Jet |
| Height | 41 inch |
| Width | 40 inch |
| Length | 30 inch |
| Net Weight | 473 pound |
