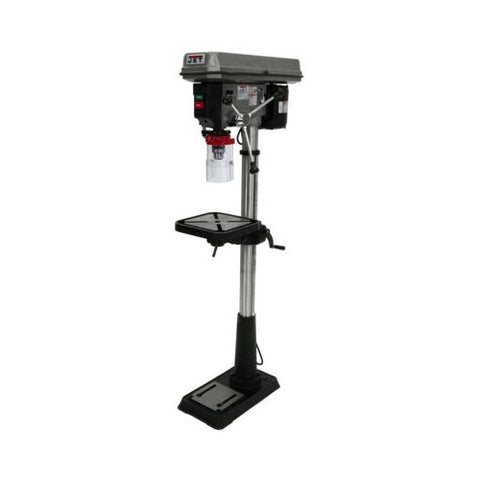

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Style (Type)	Belt Drive
Drills to Center of Circle (in)	15
Drilling Capacity Cast Iron (In.)	5/8
Drilling Capacity Mild Steel (In.)	1/2
Distance Column to Spindle (In.)	7-1/2
Number of Spindle Speeds	16
Range of Spindle Speeds (RPM)	200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Column Diameter (In.)	2-7/8
Spindle Taper (In. x TPI)	MT-2
Spindle Travel (In.)	3-3/8
Spindle Distance to Base (In.)	48
Spindle Distance to Table (Max.) (In.)	24
Table Size (L x W) (In.)	11-1/2 x 11-1/2
Table Travel (In.)	24
T-Slots Number and Size (In.)	-
T-Slot Centers (In.)	-
Work Table Weight Capacity (Lbs.)	44
Base Dimensions (In.)	11 x 19-1/2
Base Work Table (In.)	7 x 7-1/2
Base Slots Number & Size (In.)	-
Motor (HP)	3/4 HP, 115V, 1Ph
Overall Dimensions (L x W x H) (In.)	31 x 13 x 63
Weight (Lbs.)	167
