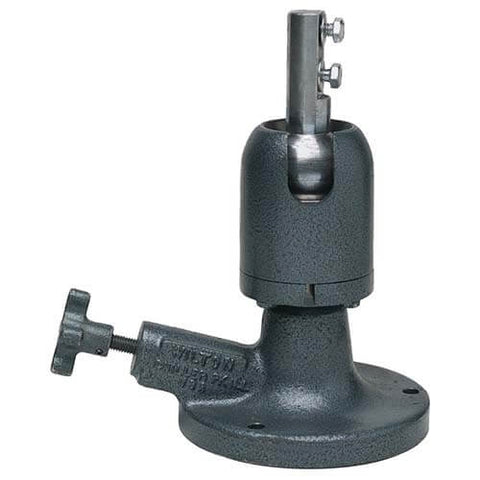

The 303 POW-R-ARM is a positioner with exceptionally fast on-off action with hydraulic locking action ideal for high production assembly line applications.

• Same size and strength as Model 301 with hydraulic locking action
• Rated for heavy-duty assembly, welding, maintenance and tool room work. Hydraulic system is hand operated, self-contained and sealed with replaceable cups two mounting holes at top(5/16-18) holes 1" apart
• WILTON Pow-R-Arms, the full swivelling, 360 deg dead-lock work positioners, puts the workpiece where you want it and holds it tight for hands-free production
• Reposition the workpiece quickly and accurately with the flexibility of Pow-R-Arms wrist action, thus eliminating time-consuming clamping and unclamping
• Pow-R-Arms increase productivity by bringing the work to the worker-which helps reduce fatigue, back injury and other health problems
• Available in a wide range of models for every job size, Pow-R-Arms are perfect for any application-at a permanent workstation, assembly line or workbench

• Type Hydraulic
• Workholding Capacity (Lbs.) 150
• Base Diameter (In.) 5-7/8
• Diameter Bolt Circle (In.) 5
• Extended Height (In.) 10-1/2
• Height 8.9000
• Length 6.6000
• Weight 14.6000
• Width 6.2000

1x Wilton 16300 303, Hydraulic No. 303 Pow-R-Arm
