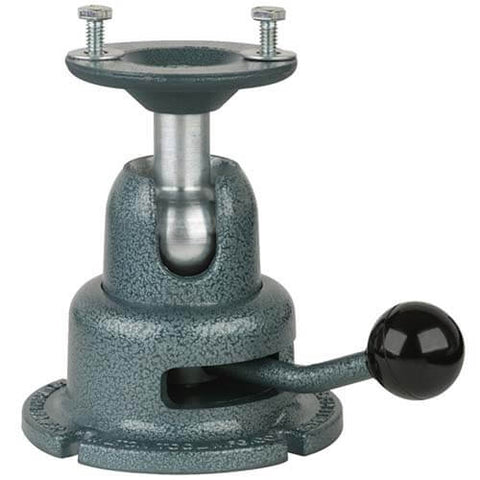

The 343 Pow-R-Arm Junior provides fast on-off action with horizontal moving lock handle.

• Fast on-off action with horizontal-moving lock handle
• Body is cast aluminum with steel parts
• 3" diameter mounting pad with two 1/4 - 20 holes 180 degapart. Four slotted equally spaced 9/32" diameter mounting holes
• WILTON Pow-R-Arms, the full swivelling, 360 deg dead-lock work positioners, puts the workpiece where you want it and holds it tight for hands-free production
• Available in a wide range of models for every job size, Pow-R-Arms are perfect for any application-at a permanent workstation, assembly line or workbench
• Reposition the workpiece quickly and accurately with the flexibility of Pow-R-Arms wrist action, thus eliminating time-consuming clamping and unclamping
• Pow-R-Arms increase productivity by bringing the work to the worker-which helps reduce fatigue, back injury and other health problems

• Type Junior
• Workholding Capacity (Lbs.) 30
• Base Diameter (In.) 4-1/4
• Diameter Bolt Circle (In.) 2-1/4
• Extended Height (In.) 5
• Height 4.9000
• Length 6.6000
• Weight 4.4000
• Width 4.8000

1x Wilton 16180 343, Junior No. 343 Pow-R-Arm
