JET S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET S90 is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET S90 is the ideal contractor grade hoist.

• Safety
• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Durability
• Grade 80 black oxide coated load chain for added durability
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• NEW! Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Needle bearings support the load sheave to increase efficiency and promote smooth operation
• Impact resistant all steel construction for added durability and protection
• The smaller body and lightweight design are ideal for confined areas and low headroom applications
• Standards
• This product complies with ANSI / ASME B30.16 and HST-2 Standards
• Load tested to 125% of capacity with certificate

• Load Capacity (Tons) 1-1/2
• Lift (Ft.) 10
• Overload Protection No
• Headroom (In.) 14-1/2
• Hand Chain Overhaul (Ft.) to Lift Load 1Ft. 57
• Hand Chain Pull Force (LBF) to Move Load 84
• Load Chain Dimensions (Mm.) 8 x 24
• Number of Falls 1
• Weight (Lbs.) 50

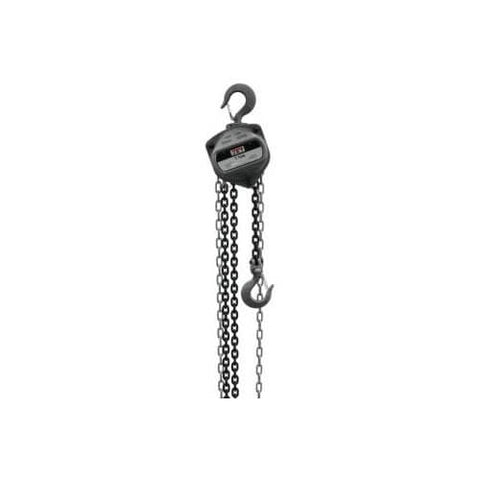

• 1x S90-150-10, 1-1/2-Ton Hand Chain Hoist With 10' Lift
