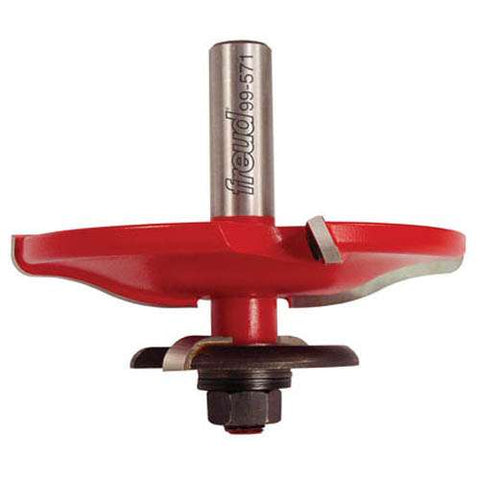

Freud Tools 3-1/2" (Dia.) Raised Panel Bit W/Backcutters (Quadra-Cut)
$124.97
Product Code: FRE-99-571
Freud 99-571 Raised Panel Router Bit w/Backcutters with 3-1/2" Overall Diameter
Aplication: Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
- Exclusive Quadra-Cut design combines a backcutter with the smooth cuts of Freud's Quadra-Cut Raised Panel Bits
- Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
- Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
Overall Diameter (D): 3-1/2"
Bearing Diameter (B):
Bearing Type:
Carbide Height (h): 1"
Cut Depth(c):
Minor Height(m):
Small Diameter(n) :
Radius ( R ):
Large Radius (R1): 1-3/16"
Small Radius(R2): 5/32"
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :3"
