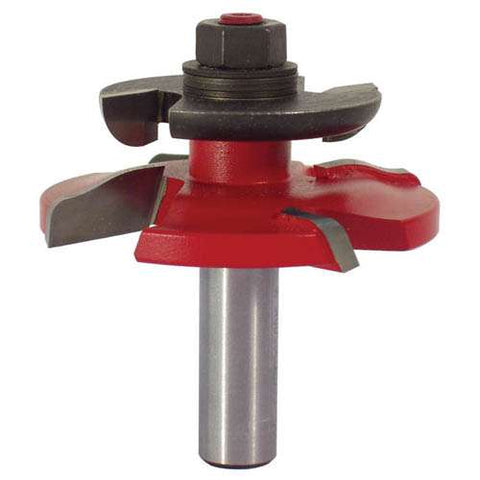

Freud Tools 2-19/32" (Dia.) Raised Panel Bit W/Backcutters (Quadra-Cut)
$124.97
Freud 99-500 Raised Panel Router Bit w/Backcutters with 2-19/32" Overall Diameter
Aplication: Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
- Exclusive Quadra-Cut design combines a backcutter with the smooth cuts of Freud's Quadra-Cut Raised Panel Bits
- Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
- Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
Overall Diameter (D): 2-19/32"
Bearing Diameter (B):
Bearing Type:
Carbide Height (h): 7/8"
Cut Depth(c):
Minor Height(m):
Small Diameter(n) :
Radius ( R ):
Large Radius (R1): 3/4"
Small Radius(R2): 7/64"
Angle (d):
Shank Diameter (A) :1/2"
Overall Length(H) :2-51/64"
