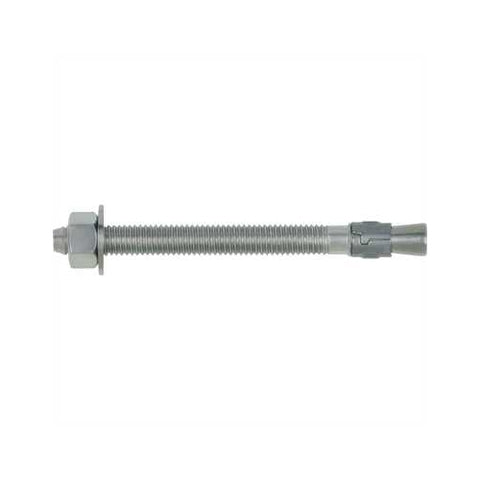

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

• Anchor Size - 1 in. x 9 in.
• Anchor Material - Type 304 SS
• Thread Length - 5-3/8 in.
• Minimum Embedment Depth - 4-1/2"
• STD Box - 10
• Weight Per Box - 22.25 lbs.

(10) DeWalt 07363-PWR PowerStud 1 in. x 9 in. Stainless Steel Wedge Expansion Anchors
