The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

• Anchor Size - 1/4" X 3-1/4"
• Anchor Material - Type 304 SS
• Thread Length - 2-1/4 in.
• Minimum Embedment Depth - 1-1/8 in.
• STD Box - 100
• Weight Per Box - 4-3/4

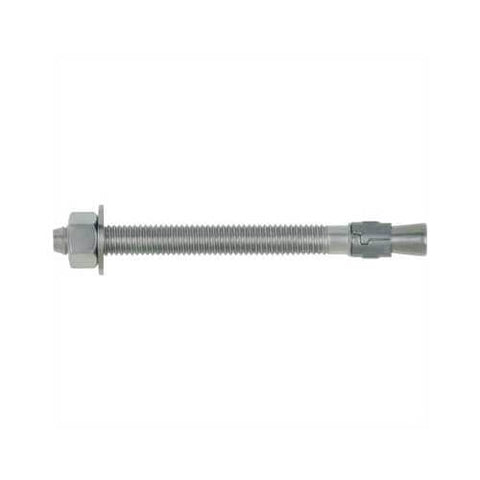

(100) DeWalt 07304-PWR PowerStud 1/4 x 3-1/4 in. Stainless Steel Wedge Expansion Anchors
